Details

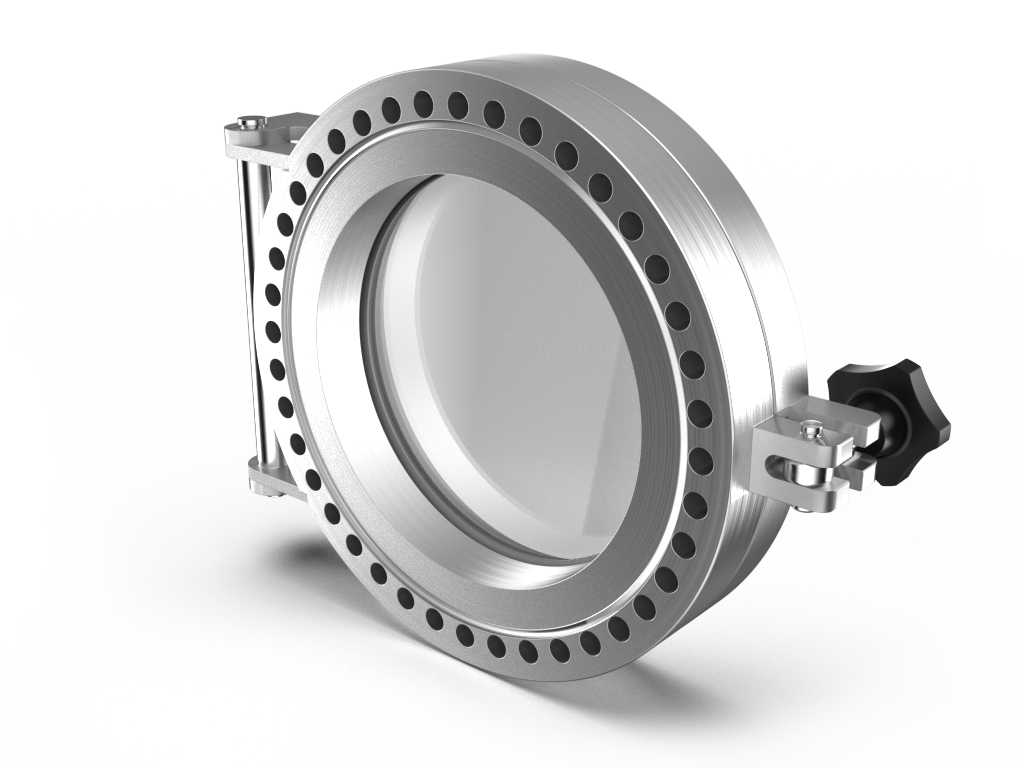

ITL Vacuum QAD150 (Quick Access Door) is a vital compenent for enabling fast and convenient entry into vacuum systems for sample transfers from atmosphere into the processing chamber / System.

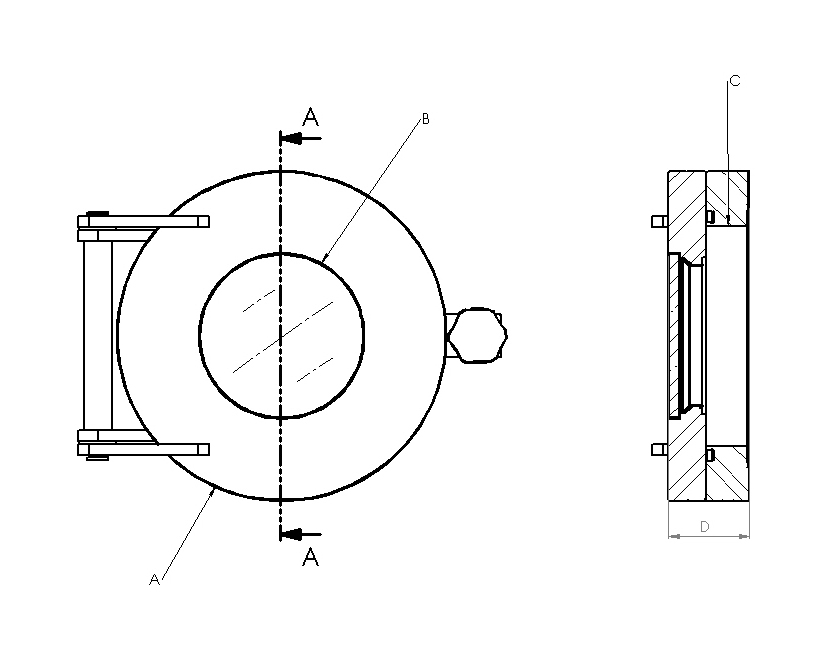

Dimensions
| Part Number |
Pneurop |
A |
B |
C |
D |
| QAD150 |
CF150 |
202.50 (7.97) |
145.5 (5.72) |
138.00(5.43) |
42.75 (1.68) |
Technical Information
Flange Type: CF150
Flange Material: Stainless Steel (304)
Viewport: Yes
Viewport Seal Type: Glass Seal
Flange seal Type: Viton O-Ring
Vacuum Range: 1.2bar~ 1x10-8 mba
Leak Rate: 1x10-9 mbar.l/sec
Temprature Range: -10°C to 200°C (Sustained 150°C)
