Details

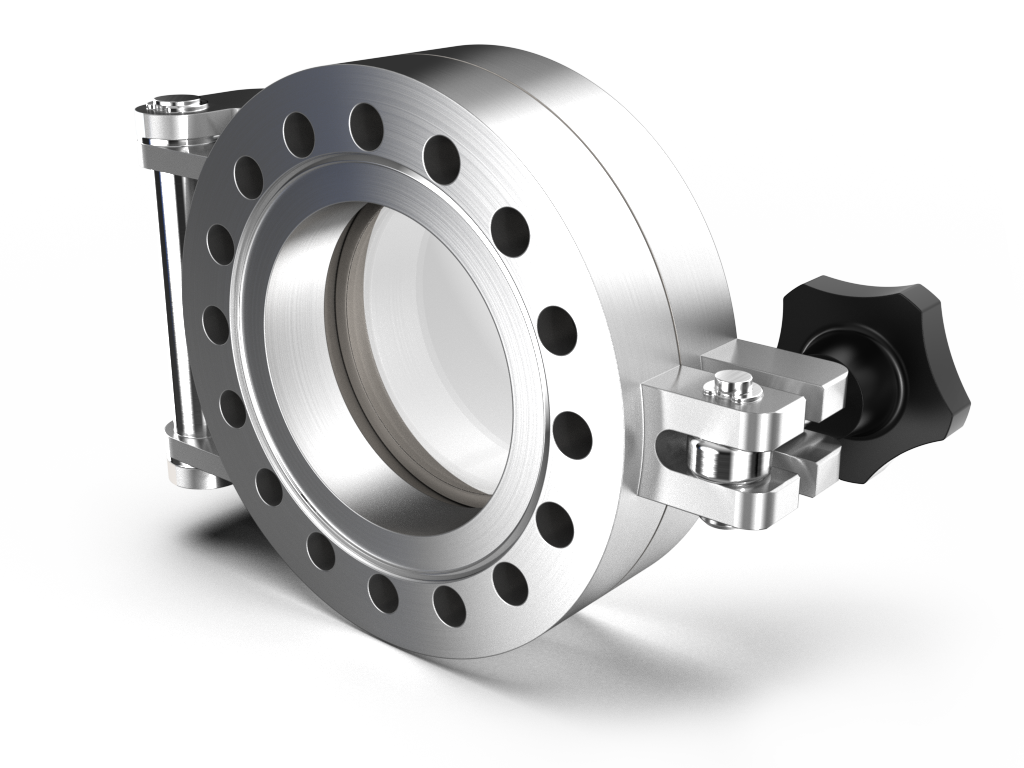

ITL Vacuum QAD63 (Quick Access Door) is a vital compenent for enabling fast and convenient entry into vacuum systems for sample transfers from atmosphere into the processing chamber / System.

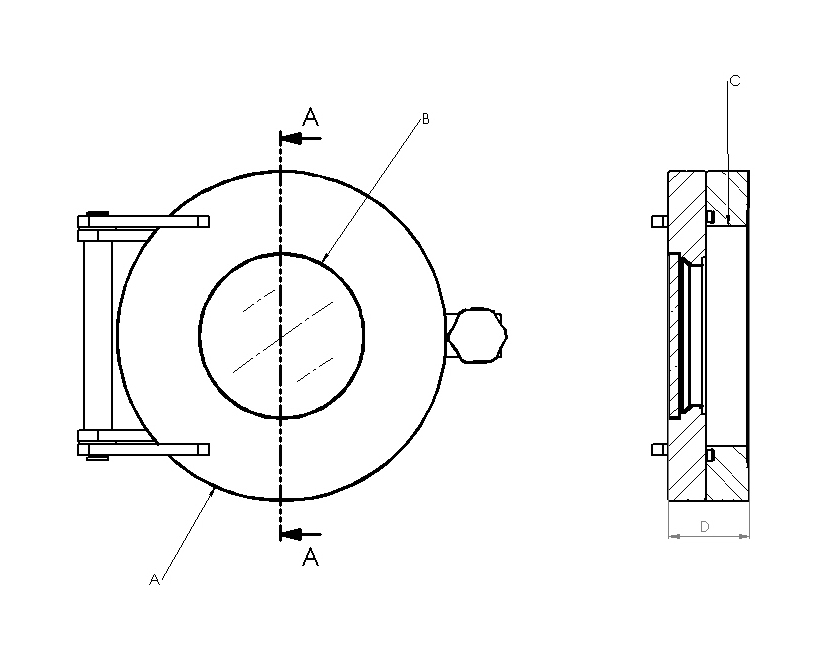

Dimensions
| Part Number |
Pneurop |
A |
B |
C |
D |
| QAD63 |
CF63 |
113.50 (4.46) |
72.5 (2.85) |
64.50(2.53) |
35.50 (1.39) |
Technical Information
Flange Type: CF63
Flange Material: Stainless Steel (304)
Viewport: Yes
Viewport Seal Type: Glass Seal
Flange seal Type: Viton O-Ring
Vacuum Range: 1.2bar~ 1x10-8 mba
Leak Rate: 1x10-9 mbar.l/sec
Temprature Range: -10°C to 200°C (Sustained 150°C)
