Details
ITL Vacuum QAD35BK (Quick Access Door) is a vital compenent for enabling fast and convenient entry into vacuum systems for sample transfers from atmosphere into the processing chamber / System.

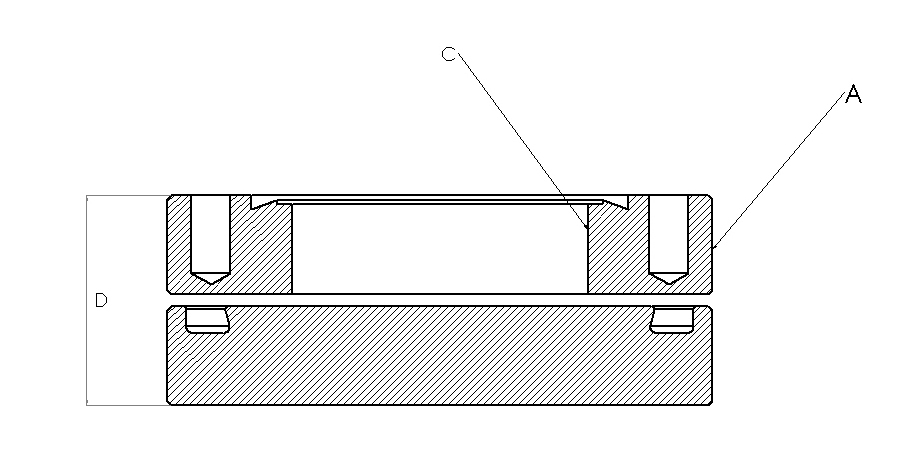

Dimensions
| Part Number |
Pneurop |
A |
C |
D |
| QAD35BK |
CF100 |
70.00 (2.75) |
38.00(1.47) |
27.00 (1.06) |
Technical Information
Flange Type: CF35
Flange Material: Stainless Steel (304)
Viewport: No
Flange seal Type: Viton O-Ring
Vacuum Range: 1.2bar~ 1x10-8 mba
Leak Rate: 1x10-9 mbar.l/sec
Temprature Range: -10°C to 200°C (Sustained 150°C)
