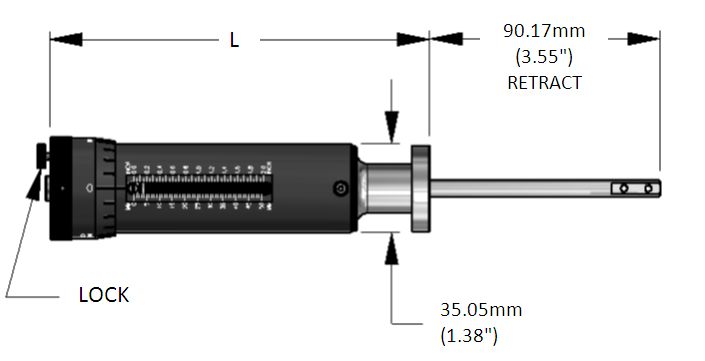

| PART NUMBER |
PNEUROP |
STROKE |
LENGTH |
| L-2111-4-SF |
NW16 |
101.6 (4.0) |
218.7 (8.61) |
Specification:
Sealing Mechanism: - Welded Bellows
Material Exposed to Vacuum: - Stainless steel.
Bakeout Temperature: - 200°C
Operating Temperature: - -20°C to 150°C
Pressure Range: - Atmosphere to 1 x 10⁻¹¹ Torr
Position Lock: - Thumb Screw
Maximum Axial Load: - 4.5kg (10lbs) concentric load
Maximum Lateral Load: - 1.36kg (5lbs) at tip in retract position
Scale Resolution: - Linear 1.27mm (0.05") Dial 0.05mm (0.002")
Thread Pitch: - 1.27mm (0.05") per revolution
