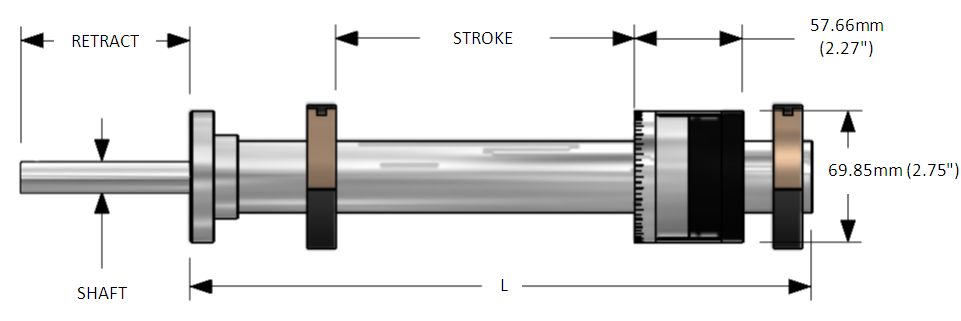

| PART NUMBER |
SHAFT |
STROKE |
L |
RETRACTED LENGTH |
| VFC-169-18 |
15.88 (0.625) OD SOLID |
457.2 (18.0) |
649.22 (25.56) |
88.9 (3.50) |
Specification:
Material Exposed to Vacuum: - Stainless steel & Teflon
Standard Mounting: - 2 ¾" flange
Bakeout Temperature: - 200°C (Maximum) W/o Magnet (30 mins)
Operating Temperature: - -20°C to 100°C
Pressure Range: - Atmosphere to 1 x 10⁻¹¹ Torr
Maximum Axial Load: - 11.34kg (25lbs) concentric load
Maximum Torque: - 8.0 lbs / in
Rotary Resolution: - Vernier 5°
Magnet Type: - Samarium Cobalt
Linear Stops: - 2 Quick Release Clamps
